Description

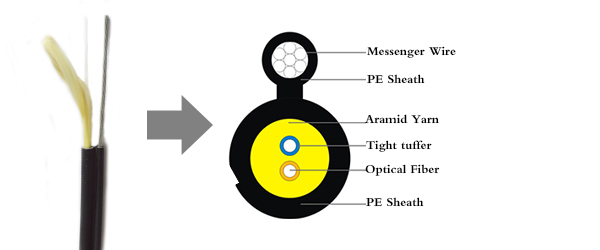

Mini Figure 8 drop Fiber Optic Cable which is an excellent stripping performance of tight buffer fiber Cable, its
diameter and bending radius are small. It’s full filling with aramid yarn. It can installation freely in narrow room.
Mini Figure 8 drop Fiber Optic Cable Application:
1. Used for indoor wiring, the end user with cable directly;
2. Used for building introduction of optical cable;
3. The user in the FTTH indoor wiring.
Mechanical and Environmental Characteristics:
| Items | Unit | Specifications |
| Tension（Long Term） | N | 500 |
| Tension（Short Term） | N | 800 |
| Crush（Long Term） | N/100mm | 1000 |
| Crush（Short Term） | N/100mm | 2200 |
| Min. Bend Radius（Dynamic） | mm | 20D |
| Min. Bend Radius（Static） | mm | 10D |
| Installation Temperature | ℃ | -0℃ to + 60℃ |
| Operating Temperature | ℃ | -20℃ to + 70℃ |
| Storage Temperature | ℃ | -20℃ to + 70℃ |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.
