Description

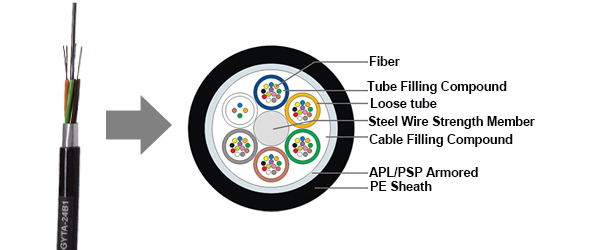

In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.
Application: Duct/Aerial
Technical Parameters
| Cable Type (increased by 2fibers) | Fiber Count | Tubes+Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| GYTA /S2 ~ 30 | 2 ~ 30 | 5 | 9.5 | 80 | 600/1500 | 300/1000 | 10D/20D |
| GYTA/S 32 ~ 36 | 32 ~ 36 | 6 | 9.7 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYTA/S 38 ~60 | 38 ~60 | 5 | 10.5 | 109 | 600/1500 | 300/1000 | 10D/20D |
| GYTA /S62 ~72 | 62 ~72 | 6 | 11.5 | 126 | 600/1500 | 300/1000 | 10D/20D |
| GYTA /S74 ~96 | 74 ~96 | 8 | 13.2 | 153 | 600/1500 | 300/1000 | 10D/20D |
| GYTA /S98 ~120 | 98 ~120 | 10 | 14.6 | 182 | 600/2000 | 300/1000 | 10D/20D |
| GYTA /S122 ~ 144 | 122 ~ 144 | 12 | 16.5 | 221 | 600/2500 | 300/1000 | 10D/20D |
| GYTA/S 146 ~ 216 | 146 ~ 288 | 18 | 16.5 | 221 | 600/2500 | 300/1000 | 10D/20D |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.
